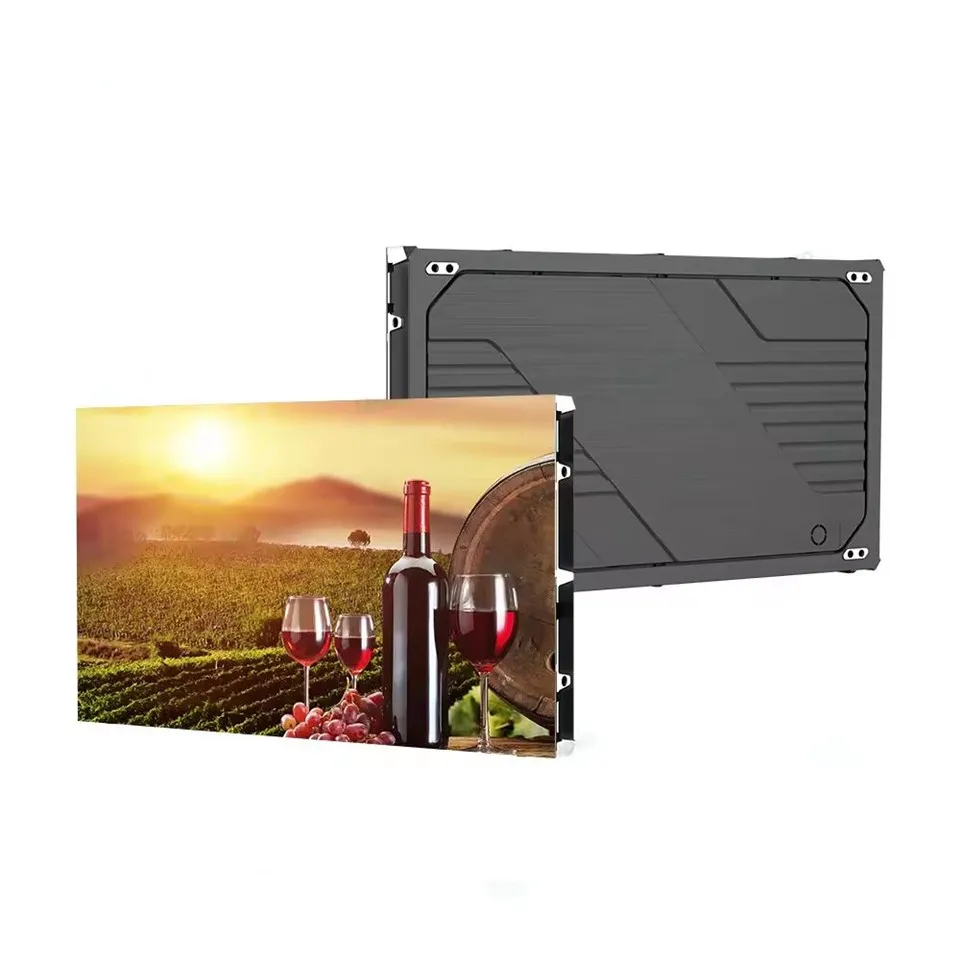

1.Mini COB Contrast Ratio 10000: 1,
2.Power mov, tswj qhov system thiab hub card 3 nyob rau hauv 1 integrated system, hnyav dua.
3. Yooj yim ntxuav los ntawm dej, tiv thaiv kev sib tsoo
4.High precision stitching, micron kam rau ua thiab kho tau
5.Common cathode Circuit Court nrog tsawg zog noj
Vaj huam sib luag loj 600 * 337 * 39mm
Technical Parameter
|
Pixel Pitch |
0.78 hli |
0. 93mm ua |
1.25 hli |
1, 56mm |
1.87mm ib |
|
Module |
150 * 168. 75mm ua |
||||
|
Kev daws teeb meem (dot) |
192*216 |
160*180 |
120*135 |
96*108 |
80*90 |
|
Kev kho saum npoo |
Matt COB |
||||
|
Vaj Huam Sib Luag Loj |
600 * 675 * 39.5 hli / 600 * 337. 5 * 39. 5mm ua |
||||
|
Vaj huam sib luag hnyav |
7.9kg (600 * 675mm) / 4kg (600 * 337.5mm) |
||||
|
Vaj huam sib luag daws teeb meem (dot) |
768*864/ 768*432 |
640*720/ 640*360 |
480*540/ 480*270 |
384*432/ 384*216 |
320*360/ 320*180 |
|
Pixel ceev (dot/㎡) |
1,638,400 |
1,137,777 |
640,000 |
409,600 |
284,444 |
|
Circuit Design |
Common cathode Circuit Court |
||||
|
Flash Kho Cia |
Siv tau |
||||
|
Brightness ntawm White Balance |
Standard 600nits |
||||
|
Refresh Rate |
1920 ~ 3840Hz |
||||
|
Qhov sib piv piv |
10000: 1 (Qhov xwm txheej tsis muaj teeb pom kev zoo) |
||||
|
Xim kub |
9300K (Standard) |
||||
|
Saib lub kaum sab xis |
160 degree |
||||
|
Input voltage |
AC 100 ~ 240V 50/60Hz |
||||
|
Max. Kev siv hluav taws xob (White Balance 600nit) |
170W / Vaj Huam Sib Luag (600 * 675mm); 85W / Vaj Huam Sib Luag (600 * 337mm) |
150W / Vaj Huam Sib Luag (600 * 675mm); 75W / Vaj Huam Sib Luag (600 * 337mm) |
140W / Vaj Huam Sib Luag (600 * 675mm); 70W / Vaj Huam Sib Luag 600 * 337 hli |
140W / Vaj Huam Sib Luag (600 * 675mm); 70W / Vaj Huam Sib Luag 600 * 337 hli |
130W / Vaj Huam Sib Luag (600 * 675mm); 65W / Vaj Huam Sib Luag (600 * 337mm) |
|
Txoj kev tu |
Kev Pabcuam pem hauv ntej |
||||
|
IP theem ntawm PCB nto |
IP54 (ntxuav los ntawm dej huv) |
||||
|
Ua haujlwm kub |
-10 degree -+40 degree /10%RH-90%RH |
||||
|
Cia Kub |
-20 degree -+60 degree /10%RH-90%RII |
||||
|
Daim ntawv pov thawj |
3C, CE, CB, ETL, FCC, ROHS, CQC |
||||
Kev Sib Koom
COB ntim LED zaub screen ncaj qha sib koom ua ke thiab ntim cov LED nti ntawm PCB, thiab siv cov txheej txheem tshwj xeeb los tsim cov khoom siv kho qhov muag. Nws tsis siv lub thav duab (bracket), uas zoo daws qhov teeb meem ntawm kev tsim lub ntim loj dua ntawm LED vim qhov tsis muaj peev xwm ntawm cov khoom siv cais kom txo qhov loj ntawm LED. Cov ntsiab lus mob ntawm LED qhia nrog me me dot pitches. COB thev naus laus zis tuaj yeem ua tiav qhov sib nrug ntawm {{0}}.5mm siv cov txheej txheem mounting, thiab qhov tsawg kawg nkaus dot suab ntawm 0.1mm siv cov txheej txheem flip-chip.
