Nta
1.Lightweight Diecasting Thaum piv rau cov hlau los yog txhuas txee ntawm tib qhov loj, lub txee yog sib dua vim hais tias rau magnesium alloy qhov ntom, uas yog ob feem peb alloy thiab ib lub quarter steel.It yog superior tshaj stell thiab txhuas alloy nyob rau hauv cov nqe lus ntawm nws tshwj xeeb muaj zog thiab nruj.
2. nyias nyias
Magnesium alloy, uas yuav siv tau los tsim high-end, nyias cov khoom thiab thinner txee thickness, yog ib qho yooj yim rau tsim.
3. Superior nqus ntawm kev co
4. Qhov ntev ruaj khov
5. Zoo dissipation ntawm tshav kub
Kev ua kom txias ceev: superior tshav kub dissipation peev xwm tiv thaiv lub modular circuit
6. Superior thermal yam ntxwv
Magnesium alloy muaj kev tiv thaiv hluav taws xob zoo tshaj thiab tiv thaiv kev cuam tshuam nrog rau lwm cov ntaub ntawv, ua kom pom kev ua haujlwm zoo.
7. High degree ntawm universality
Processable nyob rau hauv raws li lub module daim duab; haum rau sab nraum zoov thiab sab hauv daim ntawv thov
Technical parameter
|

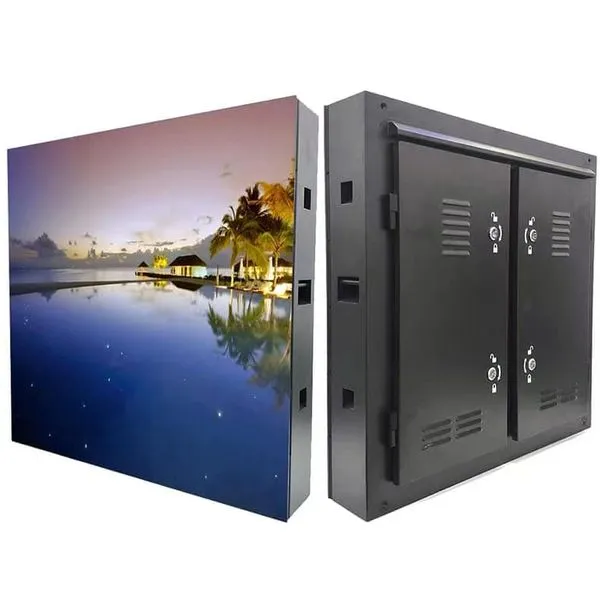

P4 sab nraum zoov coj vaj huam sib luag zaub |
|
|
LED module Dimensions |
320mm (W) x 160 hli (H) |
|
Pixel Pitch |
4mm ib |
|
Pixel ceev |
625000/m2 |
|
Pixel configuration |
1R1G1B |
|
LED specification |
SMD1921 LED zaub |
|
Pixel daws teeb meem |
80(W)x40(H) |
|
Lub zog nruab nrab |
40W |
|
Led module hnyav |
0.35Kg |
|
Cov av noo |
10%-95%RH |
|
Hub txuas |
HUB 75 |
|
Qhov pom qhov zoo tshaj plaws |
Horizontal >170 Vertical>120 |
|
Qhov zoo tshaj plaws saib nyob deb |
5-30M |
|
Ua haujlwm kub |
-20-+60 |
|
Vaj huam sib luag fais fab mov |
5V40A |
|
Input voltage |
220VAC/50HZ+_10% |
|
Max zog |
<900W/M²/PANEL |
|
Lub zog nruab nrab |
350W/M²/PANEL |
|
Tsav tsheb |
MBI5124/16237 Tus tsav tsheb tam sim no |
|
Tsav hom |
1/10 Scanning |
|
Hloov tshiab zaus |
3840 ZPO / S |
|
Zaub xim |
16.7M |
|
Brightness |
5200-5800cd/M2 |
|
Lub neej ncua |
100000hours |
|
Kev sib txuas lus nrug |
<100M |
|
Warranty |
2 Xyoo |
|
Daim ntawv pov thawj |
CE, RoHS, FCC |
Kev tuav peb cov lus qhia sab nraum zoov LED yog ua kom yooj yim nrog kev nkag tau yooj yim.Ob qho tib si pem hauv ntej thiab nram qab ntawm cov zaub yog yooj yim rau kev tswj. Tsis tas li ntawd, qhov kev tsim no yuav ua rau kev txhim kho qhov chaw txuag.Qhov no tso cai rau lawv kom haum rau txhua qhov chaw.
Muaj cov pixel pitches hauv qab no: P3.91, P4, P5.33, P6.67, P8, thiab P10.Panels feem ntau ntsuas 960 los ntawm 960 mm.
Lawv tuaj yeem nyiam qhov kev txaus siab ntawm cov neeg siv khoom muaj peev xwm ntau dua nrog cov duab pom zoo.
Koj lub hom phiaj kev lees paub yuav nce raws li qhov tshwm sim.
Tsuas yog ib qho nias, hloov kho cov khoom siv yooj yim heev.
Lawv ua cov cuab yeej tshaj tawm zoo heev.
