Lub pixel suab ntawm P2.5 sab hauv tsev coj zaub screen yog 2.5 hli. Qhov ntom ntawm cov pixels ntawm LED zaub yog hu ua pixel pitch, feem ntau hu ua suab lossis dot suab. Nws yog correlated nrog kev daws teeb meem thiab millimeter-raws li kev sib cais ntawm qhov nruab nrab ntawm ib pixel thiab qhov nruab nrab ntawm lub pixel nyob ib sab ntawm nws. Qhov qis pixel pitch qhia tias qhov chaw tsis muaj tsawg ntawm pixels vim nws ntsuas qhov deb ntawm ob pixels. Ntau pixel ceev thiab zoo dua screen daws teeb meem tshwm sim los ntawm qhov no.
|
Module parameter |
|
|
Pixel Pitch |
2.5MM ib |
|
Pixel configuration |
TIAB SA 2121 |
|
Qhov ntom |
160000 pixels / m2 |
|
Module daws teeb meem |
128 (L) x 64 pixels (H) daws teeb meem |
|
Module loj |
320 hli (L) x 160 hli (H) * 18 hli (D) |
|
Tsav hom |
Tsis tu ncua tam sim no 1/32 |
|
Kev ntsuas qhov muag |
|
|
Brightness |
Ntau dua lossis sib npaug rau 1,200 cd / ㎡ |
|
Saib lub kaum sab xis |
120 degree (kab rov tav); 120 degree (Vertical) |
|
Saib nrug deb zoo tshaj |
Ntau tshaj lossis sib npaug li 2.5m |
|
Grey Qib |
14 bits |
|
Zaub Xim |
4.4 trillion xim |
|
Kev kho qhov kaj |
100 qib los ntawm software lossis txiav los ntawm sensor |
|
Max. Kev siv fais fab |
24 W |
|
Tswj System |
|
|
Ncej zaus |
Ntau tshaj lossis sib npaug rau 60Hz |
|
Refresh zaus |
Ntau dua lossis sib npaug rau 1920Hz |
|
Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
|
Tswj nrug |
100m (Ethernet cable) |
|
Xim kub |
5000-9300 adjustable |
|
Txee loj |
640 x 480 mm |
|
Input voltage |
110-220V; AC ± 10% |
|
kev khiav hauj lwm kub / humidity |
-20 degree ~ +50 degree |
|
Kev siv hluav taws xob nruab nrab |
150-250w/㎡ |
|
Max. Kev siv fais fab |
600w/㎡ |
|
MBTF |
>5000 teev |

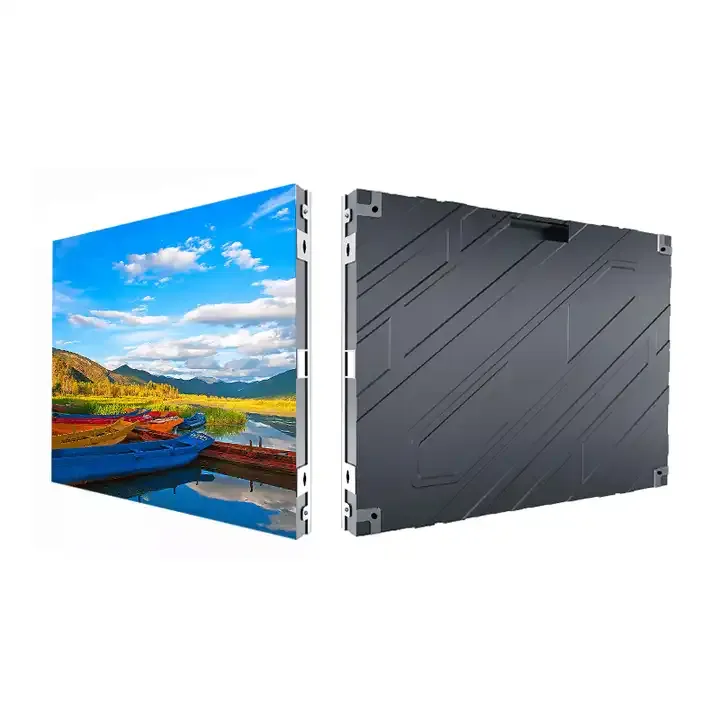

Sab Hauv Tsev P2.5 320x160mm HD LED Video Screen Module
Nta
1. Pitch me me P2.5 LED vaj huam sib luag yog lub teeb yuag thiab muaj lub txee tsim ultra-thin, uas yuav ua rau kev teeb tsa thiab disassembly yooj yim dua. Qhov no yog qhov tseeb tshwj xeeb tshaj yog rau cov khoom siv xauj tsev, uas txhais tau tias yuav txav mus los ntau.
2. Muab piv rau cov qauv qhia, P2.5 sab hauv tsev coj zaub screen muaj ntau dua kev nthuav tawm txheej thiab vividness vim rau lawv qhov sib txawv siab piv, siab greyscale, thiab zoo heev uniformity-txawm nyob rau hauv tsawg brightness. Tsis tas li ntawd, nws tuaj yeem pom cov ntsiab lus pom ntau ntxiv yam tsis muaj kev cuam tshuam cov ntaub ntawv kev ncaj ncees. P2.5 me me pitch LED vaj huam sib luag tuaj yeem tso saib cov duab zoo nkauj thiab muab cov neeg saib nrog kev pom zoo kawg nkaus vim tias lawv tsis muaj dej thiab tsis muaj dej.
3.Qhov kev ruaj ntseg ntawm cov duab tso tawm tuaj yeem txhim kho nrog tus nqi nrawm dua. Cov duab flickers thiab flutters ntau zaus thiab lub qhov muag tyre sai nrog tus nqi qis dua. Pitch me me P2.5 LED vaj huam sib luag tuaj yeem tso saib cov duab zoo ib yam, nkig thiab rov qab cov ntsiab lus tseeb ntawm cov duab thaum lawv muaj qhov ua kom siab siab.
Cov neeg tsim khoom sab saum toj JiuLong LED zaub tau mob siab rau tsim, tsim, thiab tsim cov khoom lag luam zoo LED cov kev daws teeb meem uas tau tsim los ua kom tau raws li txhua tus neeg siv khoom tshwj xeeb. Peb cov neeg txawj ntse craftspeople muab cov khoom siv thiab thev naus laus zis los tsim cov khoom siv ntev.
Vim tias peb cov khoom siv sab nraum zoov LED yog CE thiab RoHS pom zoo, kev ua tau zoo dua thiab kev ua neej ntev dua tau lees paub. Peb cov kev pabcuam suav nrog OEM thiab ODM nrog rau kev daws teeb meem.
